JIS F 7304 Bronce 16K Anglee Válvulas: Estándar de diseño: JIS F7304-1996 Estándar de prueba: JIS 7400-1996 Presión de prueba hidráulica: Cuerpo: 3,3 Mpa, Asiento: 2,42 Mpa

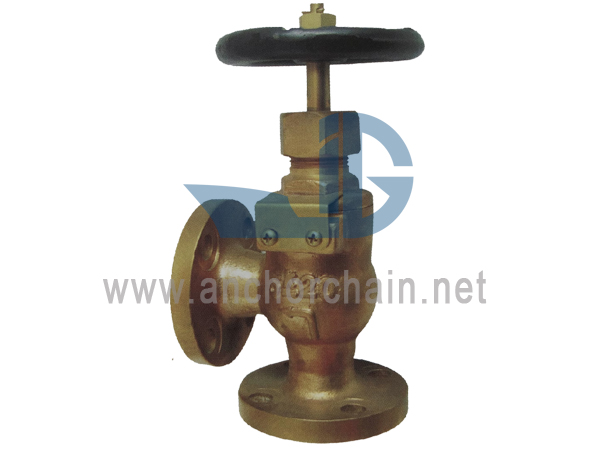

Válvula de ángulo de bronce marino JIS F7304 16K
Categoría:Válvula de ángulo marino JIS
Material: bronce, latón
Normas: JIS F7304
Certificado:CCS,BV,GL,NK,RINA,ABS,DNV,LR
Precio fob:Obtenga el último precio ahora
Lugar de origen: China
CÓDIGO IMPA | Tamaño | L | D | C | Nº de perno | h | t | H | D2 |
750151 | 15 | 70 | 95 | 70 | 4 | 15 | 12 | 120 | 80 |
750152 | 20 | 75 | 100 | 75 | 4 | 15 | 14 | 125 | 100 |
750153 | 25 | 85 | 125 | 90 | 4 | 15 | 14 | 140 | 125 |
750154 | 32 | 95 | 135 | 100 | 4 | 15 | 16 | 145 | 125 |
750155 | 40 | 100 | 140 | 105 | 4 | 19 | 16 | 160 | 140 |
