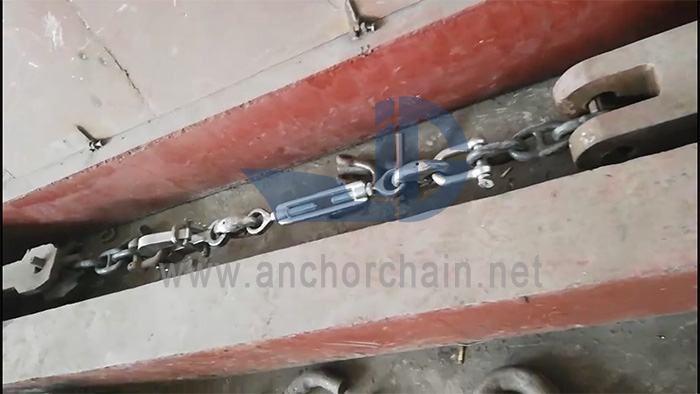

Tope de cadena de gancho Pelican Dimensiones en pulgadas, pesos en libras.
Tapón de cadena de gancho Pelican
Dimensiones en pulgadas, pesos en libras.
HS = Cadena de alta resistencia
|
Tamaño de la cadena |
milímetro |
A |
B mín. |
B máx. |
C |
D |
E |
Det. Enlace |
Prueba |
Romper |
|
Pulgadas |
Tamaño |
Libras de carga |
Libras de carga |
|||||||
|
3/4" |
19 |
16 |
33-1-4" |
40-1-2" |
1 |
11 |
7-8" |
3-4" |
67,500 |
91,100 |
|
7/8" |
22 |
17-1-4" |
38-7-16" |
45-9-16" |
1-7/32 |
11 |
1 |
7-8" |
88,200 |
119,000 |
|
1 –1-1/8 |
25 – 29 |
19-1-2" |
46-7-8" |
55-1-2" |
1-17/32 |
13 |
1-1-8" |
1-1-8" |
145.000 |
195.000 |
|
1-1-4" |
32 |
19-5-8" |
48" |
56-5-8" |
1-17/32 |
13 |
1-1-4" |
1-1-4" |
178,200 |
240,600 |
|
1-1/4HS–1-1/2 |
32HS– 38 |
23-3-4" |
55-3-16" |
65-11-16" |
1-3-4" |
16 |
1-1-2" |
1-3-8" |
211,500 |
285.500 |
|
1-3/8HS–1-5/8 |
34HS– 42 |
23-3-4" |
55-3-16" |
65-11-16" |
2 |
16 |
1-1-2" |
1-3-8" |
211,500 |
285.500 |
|
1-5/8HS– 2 |
42HS– 51 |
24-1-8" |
59-3-16" |
69-11-16" |
2-7-16" |
16 |
1-1-2" |
1-1-2" |
252,000 |
340,200 |
|
2-1/8–2-3/8 |
54 – 60 |
26-1-4" |
65-5-8" |
76-1-8" |
2-9-16" |
16 |
1-5-8" |
1-1-2" |
252,000 |
340,200 |
|
2-1/2–2-5/8 |
64 – 67 |
29-3-4" |
74-3-8" |
87-1-2" |
3-1-8" |
20 |
1-7-8" |
1-5-8" |
292,500 |
395,000 |
|
2-3/4–2-3/4HD |
70 –70HD |
29-3-4" |
86-5-8" |
89-3-4" |
3-1-8" |
20 |
1-7-8" |
1-3-4" |
352,000 |
476,000 |
|
3HD–3-1/4 |
76 HD– 83 |
36 |
90-3-4" |
106-1/2 |
3-3-4" |
24 |
2-3-8" |
2-1-4" |
403,000 |
610,000 |
|
3-3/8–3-1/2 |
86 – 89 |
38-5-8" |
97-7-16" |
113-1/16 |
3-7-8" |
24 |
2-5-8" |
2-1-2" |
492,000 |
744,000 |
|
3-1/2HD–3-3/4 |
89 HD– 95 |
44-3-8" |
110 |
128-1/8 |
4-1-2" |
27-1-2" |
2-7-8" |
3 |
706,000 |
1,068,000 |
|
4-3-4" |
121 |
44-3-8" |
130-5/8 |
147-5/8 |
5-3-8" |
27-1-2" |
2-7-8" |
3 |
706,000 |
1,068,000 |
